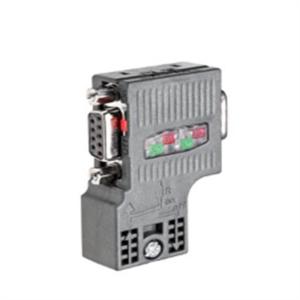

Bus Plug 6ES7972-0BB52-0XA0 Siemens DP Connector With Programming Port
SIMATIC DP, connector for PROFIBUS up to 12 MBit/s 90 ° cable outlet, insulated crimp connection Fast Connect, with PG programming device socket 15.8x 59x 35.6mm (width x height x depth)
| Number of electrical connections for PROFIBUS wires | 2 |
| Network components and terminal devices | 1 |
| PROFIBUS wire electrical connection specifications | Integrated crimping technology suitable for 2-core PB FC installation wires |
| Electrical connection specifications for network components and terminal equipment | 9-pin Sub-D plug |
| Terminal resistor specifications | Integrated resistor combination and can be connected through sliding switch |
| Housing material | plastics |
| Structural form of locking device | Fixing screw |
| Cable outlet method | 90 degree cable outlet |
